| Pt# |
Name/Desc. |
|
Price |
| 5491 |
Retract Cylinder Mount
(w/pin) |
 |
|

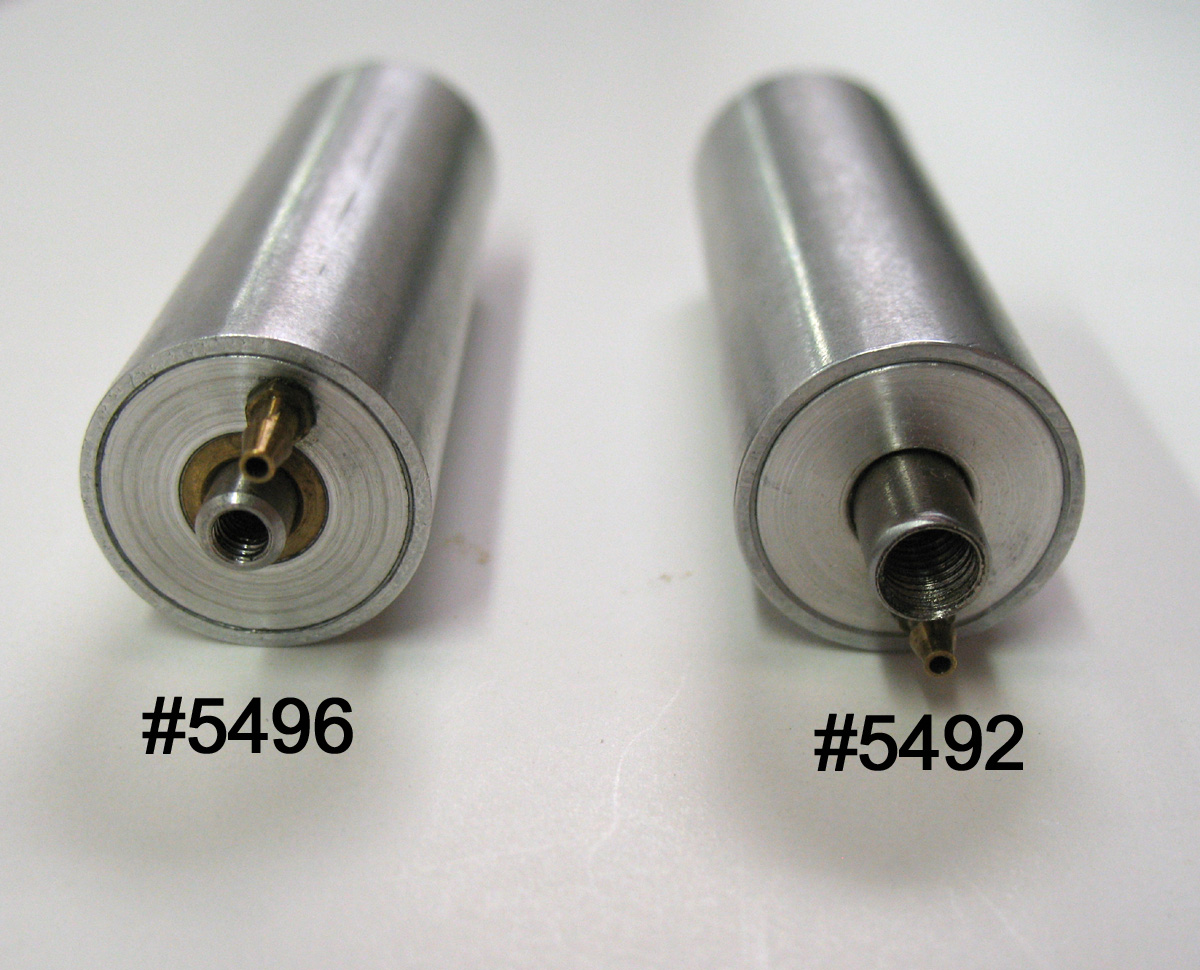

| 5496 |

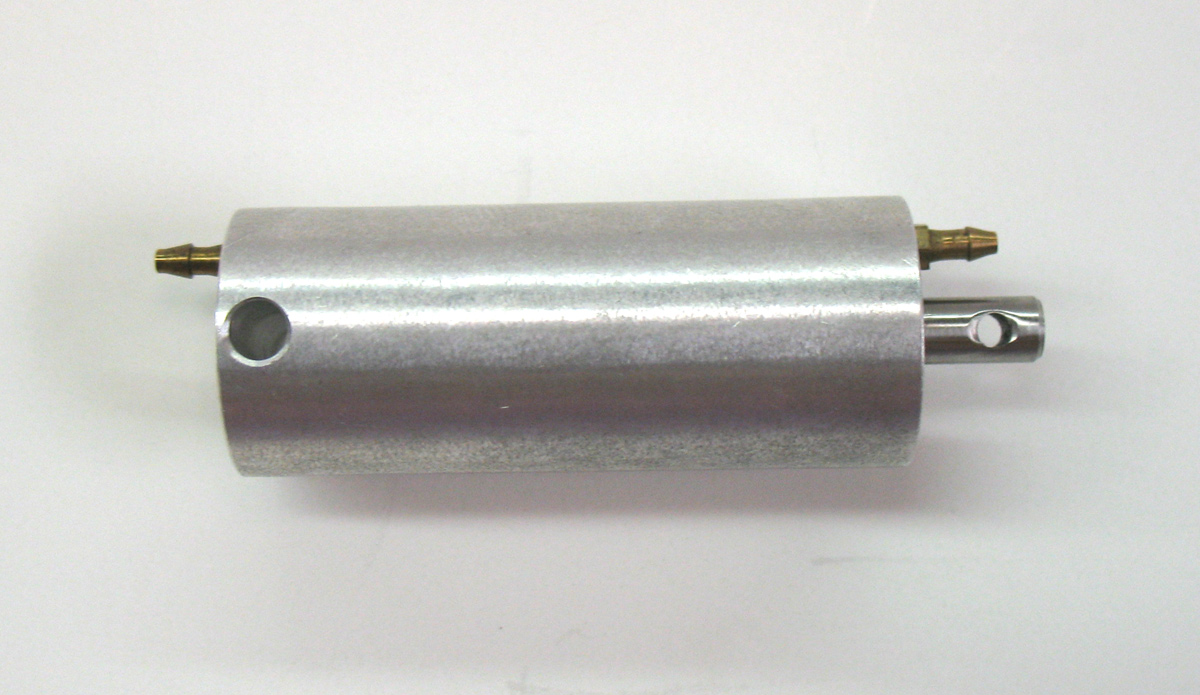

Air Cylinder 1 3/8" Stroke
(for retracts, etc.)
5/8" Diameter, 3/16 shaft, 5-40 threads |
 |
|
| 5492 |
Air
Cylinder 1 3/8 inch Stroke (for retracts, etc.)
1/4 shaft, 12-32 threads |
|
| 5494 |
Air Cylinder 1" Stroke (for
retracts, etc.)
5/8" Diameter |
 |
|
|
5751 |
Cylinder 1"
Stroke (for gear doors, etc.)
5/16" Diameter |
 |
|
| 5752 |
Cylinder 1 5/16" Stroke (for gear doors,
etc.)
5/16" Diameter |
|
| 5347 |
Cylinder 2 3/8" Stroke (L+R)
(for gear doors, etc.)
5/16" Diameter |
|
| 4176 |
Heavy Duty Airline - White 12ft |
 |
|
| 4175 |
Heavy Duty Airline - Red
12ft |
|
| 4180 |
Heavy Duty Airline - Blue 12ft |
|
| 4182 |
Heavy Duty Airline - Yellow
12ft |
|
| 4196 |
Heavy Duty Airline - Black 12ft |
|
| 4197 |
Heavy Duty Airline - Grey
12ft |
|
| 2250 |
Mini Air Gauges - pair
with laser cut mounting
bracket |
 |
|
| 5758 |
Air Fill Valve |
 |
|
| 2192 |
Air Fill Chuck |
 |
|
| 5753 |
Air Micro Switch
with mount bracket |
 |
|
| 4204 |
Air Tank - standard (1.75" dia, 7" long)
|
 |
|
| 4218 |
Air Tank
- small (1.5" dia,
5.75" long) |
|
| 4239 |
Air Tank - large (2.1" dia, 7.75" long)
|
|
| 5754 |
4-way air junction block
assembly req. |
 |
|
| 5755 |
5-way air junction block
assembly req. |
|
| 5497 |
Airline Disconnects (2/pk)
"O" Ring seal |
From left to right - #5497 Airline Disconnects 2/pk, Screw
Connects 2/pk #5498 |
|
| 5498 |
Screw Type Air Disconnects
(2/pk) |
|
| 5756 |
T-Fittings (large) (4/pk) |
 |
|
| 5774 |
T-Fittings (small) (4/pk) |
|
| 5761 |
Elbow
(small) (4/pk) |
|
| 5760 |
Hi Flow Retract Valve |
 |
|
| 5340 |
Smooth Stop II (fully
proportional) |
 |
|
| 5342 |
Smooth Stop II Plunger -
used to update original Smooth Stop |
 |
|
| 5743 |
Smooth Stop O-Rings 6pk |
 |
|
| 5495 |
EZ-Air Quick Disconnect |
 |
|
| 5493 |
EZ-Air Disconnects (6/pk) |
 |
|
| 4235 |
Brake Air Line - 6ft |
|
|
