BVM Jet Kit Accessories- Jet Wheels & Brakes

Jet Wheel Construction

BVM's Patented brake system
US Patent #5,601,159

The tires are molded from a special rubber compound because cut foam tires just won't deliver the scale shape and resilience your jet needs, and BVM tires won't get flat spots when your model sits static. A high density outer surface encapsulates a lower density rubber core that provides a tire with great wear characteristics yet can absorb hard landing shock loads. The tires can't spin off because they are through bolted rim-to-rim in eight places. The wheels are precision machined from aluminum in one piece for maximum strength and accuracy with minimum weight. Precision ground axles and matching brass bushings provide wobble free high speed performance.

Individual Wheels Note: Nose wheels may be used as mains but will not accept brakes. Buy a spacer package for each nose or main (no brake) when purchased separately.
2-1/4" V-LiteTM Wheel Electra BVM# PM-MA-0016	Weight 0.8 oz • Width 0.8"	$5.00
2-1/4" V-LiteTM Main Wheel BVM# PM-MA-0034	Weight 1.04 oz • Width 0.7"	$34.00
2-1/4" V-LiteTM Nose Wheel Fury BVM# PM-MA-0039	Weight 1.22 oz • Width 0.72"	$34.00
3" V-LiteTM Main Wheel BVM# PM-MA-0036	Weight 1.72 oz • Width 0.83"	$40.00
2-1/4" Nose Wheel - Aluminum BVM# 5697	Designed as a nose wheel for BVM Sport Jets and the F-4 Phantom, this non-brake unit can also be used as a main wheel for many models. Weight 1.8oz • Width 3/4"	$34.00
2-1/4" Main Wheel - Aluminum BVM# 5672	A popular size for BVM Sport Jets that is also being used for Yellow A/C F-4 mains. Weight 1.8oz • Width 3/4"	$34.00
2-5/8" Main Wheel - Aluminum BVM# 5679	Developed specifically for grass field ops with Sport Jets where it's larger diameter can be accommodated in the wheel well. Also available without the brake unit. Weight 2.5oz • Width 13/16"	$40.00
2-5/8" Nose Wheel - Aluminum Rafale BVM# 5694	This 2-5/8" diameter wheel has additional hex bolt heads on the inner rim to replicate the real Rafale nose wheel. It utilizes a 3/16" axle. Weight 2.5oz • Width 13/16"	$40.00
2-5/8" Nose Wheel - Aluminum BVM# 5687	Designed for the scale Sabre Jet nose wheel. Modelers have found that it helps to have a larger nose wheel for grass field operations with some sport jets. Weight 2.3oz • Width 13/16"	$40.00
3" Main Wheel - Aluminum BVM# 5688	The popular BVM Sabre Jet and Fury version use this brake equipped main wheel for great runway handling. Can be used on other models requiring 3" dia mains. Weight 2.9oz • Width 13/16"	$44.00

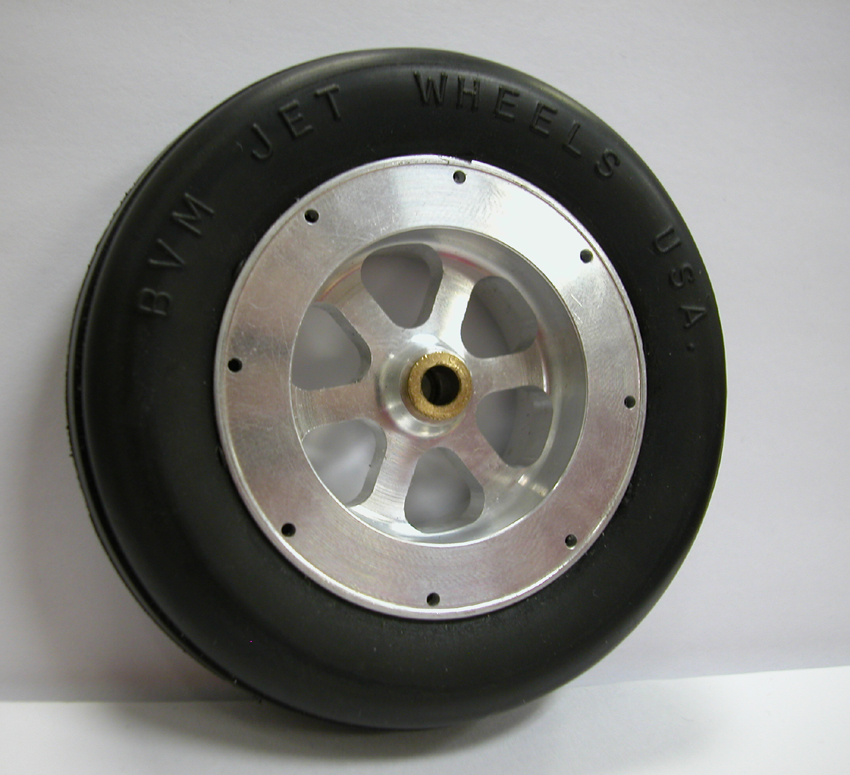

3-1/4" Nose Wheel - Aluminum BVM# 5680	Several different style castings were used for the F-80/T-33 nose wheels and these details are machined into the aluminum. The molded discs can be added for another popular style. Weight 3.5oz • Width 7/8"	$49.50
3-1/2" Main Wheel - Aluminum BVM# 5682	Handling the side loads on narrow stance models like the F-80/T-33 are a specialty of these BVM Jet Wheels making them a real necessity for good ground handling. Weight 4oz • Width 7/8"	$55.00
3-1/2" Main Wheel - Aluminum F4 BVM# 5696	Manufactured expressly for the BVM F-4 super scale model to handle the weight and high tire speeds experienced on take-off. The brakes are powerful enough to hold back the twin .91's at full throttle. Weight 6.8oz • Width 1-5/16"	$93.50
3-5/8" Nose Wheel - Aluminum F86 (80) BVM# 5698	Weight 6.46 oz • Width 1.2"	$95.00
4" Main Wheel - Aluminum MiG BVM# 5615	This MiG-15 main wheel is beautiful with its solid design incorporating the patented BVM brake and screws through the tire. With its 4" diameter and thin profile, this wheel can also be great for main wheels on other scale or sport aircraft. This wheel utilizes a 1/4" axle. Weight 5.4oz • Width 7/8"	$60.00
4-1/8" Main Wheel - Aluminum (Rafale) BVM# 5695	BVM's largest tire/wheel combination is 4-1/8" diameter and 1-1/4" wide. It easily handles the 45lb load of the Rafale with full tanks. Weight 8oz • Width 1-1/4"	$93.50
4-1/16" Main Wheel - Aluminum F86 (80) BVM# 5699	Weight 7.02 oz • Width 1.55"	$93.50
4-1/16" Main Wheel F-100 BVM# 5684		$93.50
4-1/16" Main Wheel - Aluminum Ultra Bandit BVM# K7310A-04	Weight 7.26 oz • Width 1"	$93.50

Wheels & Brakes - complete sets Includes - Wheels, Brakes, and Brake Install Kit. Brake Valve and Axles sold separately.
3" mains, 2-3/4" nose V-LiteTM Wheels & Brakes Does Not Include Install Kit This V-LiteTM wheel set saves 4oz over the original BVM Jet wheels. BVM# E3010A-02	$225.00
2-1/4" mains, 2-1/4" nose V-LiteTM Wheels & Brakes This V-LiteTM wheel set saves 3oz over the original BVM Jet wheels. BVM# E2010A-05	$325.00
3" mains, 2-1/4" nose V-LiteTM Wheels & Brakes Does Not Include Install Kit BVM# E3010A-09	$255.00
2-5/8" mains, 2-1/4" nose Wheels & Brakes BVM# K6310A-05	$190.00
3-1/2" mains, 3-1/4" nose Wheels & Brakes BVM# K6810A-05	$275.00
3" mains, 2-5/8" nose Wheels & Brakes BVM# 5635	$255.00
3" mains, 2-5/8" nose Wheels & Brakes BVM# 7235	$255.00
3-1/2" mains, 3-1/4" nose Wheels & Brakes BVM# 5640	$285.00
Scale Main Wheels & Brakes w/Du-Bro 3" nose wheel BVM# 5670	$170.00
2-5/8" mains, 2-1/4" nose Sport Wheels & Brakes-grass BVM# 5764	$210.00
2-1/4" set of 3 Sport Wheels & Brakes BVM# 5765	$198.00
2-5/8" mains, 2-5/8" nose Sport Wheels & Brakes BVM# 5767	$218.00
2-5/8" mains, 2-1/4" nose Wheels & Brakes BVM# 5770	$215.00

Wheels Sets - without BV Brakes Includes - Wheels, Tires, Screws, Drill , and Spacers
3" mains, 2-1/4" nose V-LiteTM Wheels	$88.00
2-1/4" mains, 2-1/4 nose V-LiteTM Wheels	$73.00
3" mains, 2-5/8" nose Wheels	$133.00
3-1/2" mains, 3-1/4" nose Wheels	$165.00
2-5/8" mains, 2-1/4" nose Sport Wheels -grass	$119.00
2-1/4" set of 3 Sport Wheels	$106.00
2-5/8" mains, 2-5/8" nose Sport Wheels	$126.50

Main Wheels, Brakes, and Install Kit - without Nose Wheel
2-1/4" Sport Main Wheels & Brakes	$165.00
2-5/8" Sport Main Wheels & Brakes	$174.00
3" Main Wheels & Brakes	$215.00
3-1/2" Main Wheels & Brakes	$236.00
4" Main Wheels & Brakes	$187.00

"BV" Brake - How it Works

US Patent #5,601,159

It's very simple, air pressure is injected into the "O"ring groove inside the "O"ring's inner diameter forcing it out against the wheels inner drum. Note: The pressure does not push the wheel outward against the retaining washer. Elasticity of the "O"ring releases the brake when air pressure is relaxed. Brake application uses only 1 to 2 psi of your retract actuation supply or you can add a small air tank to your model. This is a brake that is very tough to wear out - the BVM factory flying team hasn't been able to yet!

Quantity	Wheels Parts
	# 5902	Sabre V-LiteTM Brake Hub $79.00 (pair)
	# 5901	Electra V-LiteTM Brake Hub $59.00 (pair)
	# 1374	Sport Brake Hub $29.50
	# 1384	Sport Grass Brake Hub $39.50
	# 1386	F-80/T-33 Brake Hub $44.00
	# 1389	F-86 Sabre Brake Hub $39.50
	# 1398	F-4 Brake Hub $71.50
	# 1376	Rafale Brake Hub $71.50
	# 1394	F-16 Hub $47.00
	# 1408	MiG Hub $38.50
	# K7310A-05	Ultra Bandit Brake Hub $71.50
	# 1463	2-1/4" Tire $9.25
	# 1454	2-5/8" Tire $10.00
	# 1453	3" Tire $10.75
	# 1451	3-1/4" Tire $11.00
	# 1452	3-1/2" Tire $11.50
	# 1461	3-1/2" Tire (F-4) $21.00
	# 1464	4" Tire (MiG-15) $11.50
	# 1472	4-1/16" Tire $19.00

For Tire Changing Tools click here
