Air
Gauges
(for retract/brake tank pressure readings,
etc.)
 These dime size, high quality gauges serve as a quick
check of the integrity of your model's air systems. The dial registers up to
150 psi in 10lb increments.
A laser
cut 1/8" plywood board serves as a convenient way to mount them by hand
threading the boss into accurately cut holes. Factory installed barbed brass
nipples will hold the air line very securely to the back side of the
gauges.
A package of 2 gauges
also contains 2 "T" fittings and the mounting plate. |
| BVM #2250Price: $40.95
|
|
| |

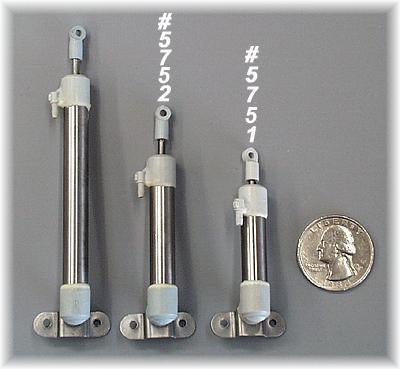

Air Cylinders -
5/16" diameter (for gear doors, etc.)
BVM #5751 door cylinder has a 1" stroke. Price is
$27.50
BVM #5752 door cylinder has a 1-5/16"
stroke. Price is $27.50
Unlabeled door cylinder is
new and will be available shortly.
|

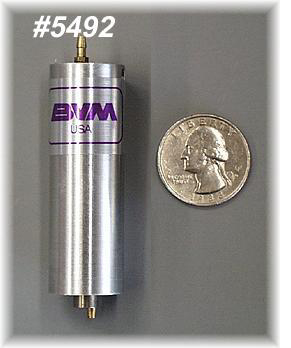

Air Cylinder - 5/8"
diameter (for retracts, etc.)
BVM #5492 retract cylinder has a 1-3/8" stroke. Price
is $30.25

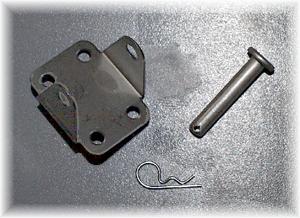

Retract Air Cylinder
Mount
|
|
Air
Tanks
From left to right - Extra Large, Large, Standard,
Small
|
|
4 and 5 way air junction blocks
 |
Elbow and T-fittings
 |
BVM Fill Valve #5758
tested @
180 psi at the factory
|
BVM
Fill Chuck #2192
Fill Chuck swivel end to fit
1/4" hose on electronic pumps
For use with BVM Fill
Valve's.
|

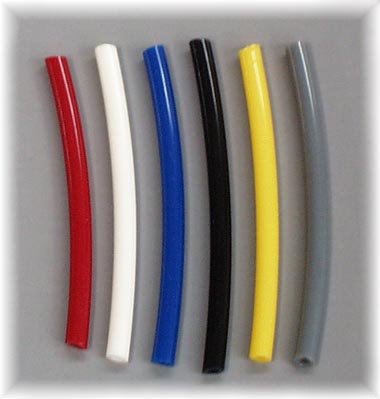

Heavy duty air line - red,
white, blue, black, yellow and gray - 12' lengths
BVM's Heavy Duty Pneumatic Tubing
is available in 6 different colors.
In use for over one year in our
F-100D, we are certain that this tubing offers much longer life and reliability
for your air system installation.
We have tested it at 160psi and
130°F temperatures and have found that it will not release from the
cylinder nipples, "T" fittings, etc. and that the tubing walls will not blow
out as will lesser quality material.
So, if you are gearing up a new
jet or are refurbishing last year's model, BVM's Heavy Duty Pneumatic Tubing
will add an increased measure of reliability to your various pneumatic
systems.
|
EZ AIR#5495
The E-Z Air has been updated and the new version
includes larger laser cut mounts. The E-Z Air is the easiest way to connect
your air lines. They mount at the root of the wing and in the fuselage. When
you plug your wing in, you automatically have your air lines connected with an
o-ring seal. This is a sure way to never forget to connect your airlines and
saves lots of time and trouble at the field.
|
Quick Disconnects
From left to right - #5497 Airline Disconnects 2/pk, Screw
Connects 2/pk #5498 |
Air Micro
Switch
(Used for wheel
brake valve, gear doors, etc.)
BVM #5753
$27.50 |
