Add a new dimension to your Radio Control hobby.
NO MORE GUESSING ABOUT PERFORMANCE

The Eagle Tree Seagull Pro flight telemetry system

This handy system is being used in our new Ultra Bandit during testing of the prototype. This system provides real time airspeed, g-forces, altitude, and soon, the complete engine specs (BVM exclusive for use with JetCat engines). This has proven invaluable during the prototype flight testing.



The Eagle Tree Pro Telemetry system provides up to 20 parameters of data from your jet in real time, conveniently displayed on the scrollable pages of the LCD Data Dashboard. And, audible beeps can be easily programmed for high or low alarm values on the data, letting you set alarms for critical system parameters, like high altitude, low battery, high temp, stall speed, high RPM, and so much more. And best of all, no PhD in computer science is required!

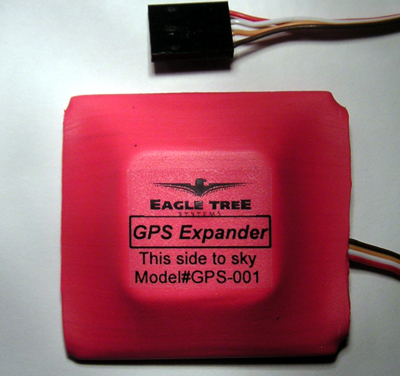

You can add the micro GPS expander module to the system, which gives you in-flight and recorded position, course, ground speed, GPS altitude, distance to pilot, UTC time stamp. The software to chart your flight in 3D is also included.

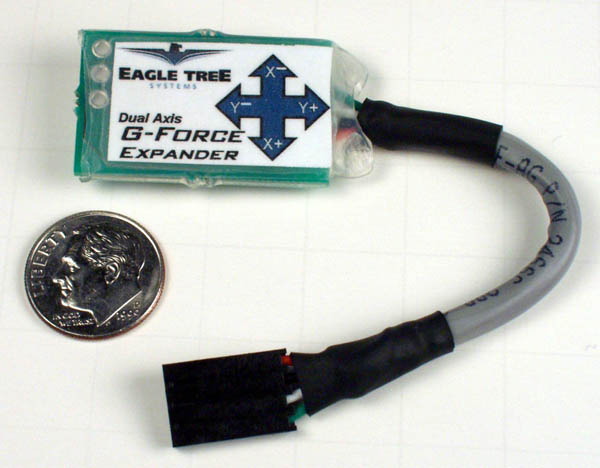

The G-Force expander module allows you to measure dual axis acceleration and G-force up to +/- 38 G's.

**BVM Exclusive**

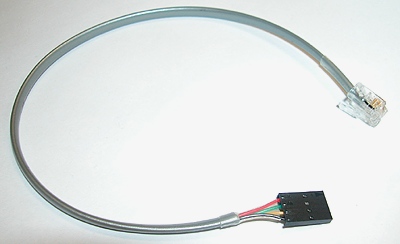

The new JetCat ECU Expander allows you to see your RPM's, temperature, ECU battery voltage, pump voltage, throttle position and ECU status. An audible alarm can sound off on the hand held receiver unit if your engine suddenly flames out - this could be the difference in making the runway or not if the situation arises. This expander unit works with "Pro" models only.

Seagull Pro Wireless Flight Dashboard System Features

• Full varying tone variometer with Total Energy compensation

• Operates at 900MHz spread spectrum

• FCC version has 200 mWatt output power for one mile or more range (more with a Yagi antenna on the receiver).

• Optional higher power radios available.

• Onboard components weigh only an ounce or two (depending on model and accessories), TOTAL. Other systems weigh much more.

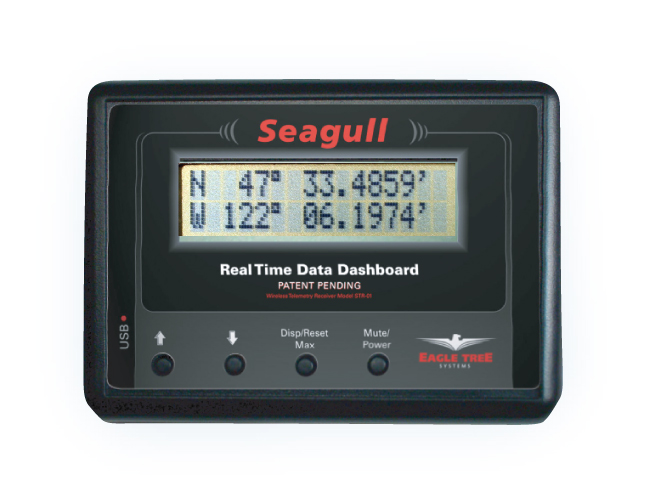

• Small self-contained LCD Telemetry receiver attaches simply to your radio, or is monitored by your assistant.

• Dashboard is a USB peripheral: plug the receiver into your laptop while to get full screen live display and unlimited recording on your laptop.

• On-board components are powered from your receiver battery – other systems require heavy, cumbersome batteries to worry about.

• 65536 unique transmission IDs (programmable) means collision problems are extremely unlikely at your site.

• Fully programmable audible alerts can be set on data parameters.

• Ultra-light stainless whip antennas.
• Airspeed measurement from 2 to 290 MPH, with separate pitot and static input ports (high resolution)

• Altitude to 25K+ feet, with 1' resolution

• Onboard memory increased to 16X our original recorder, with lossless data compression, for hours of record time.

• USB Live Mode for real time bench monitoring

• USB Plug and Play - No new drivers needed

• Fully Compatible with Win 98SE, ME, Win2K and XP™

• Lightweight - approx 1.5 ounces with unit and cables

• Simple and quick installation and removal

• Retains flight data without battery

• Graphical flight playback in real time

• Excel™ compatible data output

• Ultra-low power consumption - around 70 ma

• Built-in status LED indicates battery level on power-up

• Adjustable capture rate

• Powerful built-in graphing

• Expansion port for future enhancements

Click here to view Seagull Pro Flight System Manual (PDF)

JetCat Airspeed Pitot

BVM Pitot Tube Mount #6827
