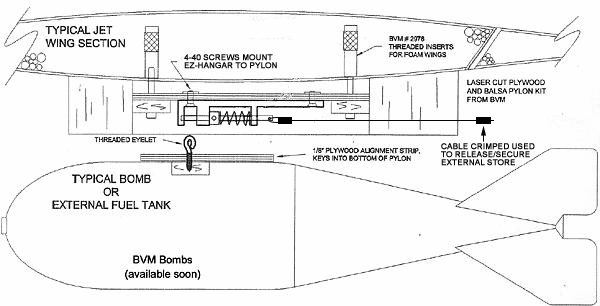

EZ-HANGER

To compliment our pneumatic powered EZ-DROP, we also offer this similar device intended to ease the mounting and removal of external stores by simply pulling aft on the cable.
Tanks, bombs and missiles really add to the "presence" and "scale realism" of jet models whether they be on static display or in action at 150 + m.p.h.
Handling and transporting the model with external stores however, can be a cumbersome task and sometimes results in damage to fins or pylons.
We think you will find the BVM EZ-Hangers a very handy accessory when adding some "parasites" to your jet.

EZ-Hangers fit into the same size opening and utilize the same bolt pattern as the EZ-DROPS, they are interchangeable.

BVM #2185

Price: $21.95

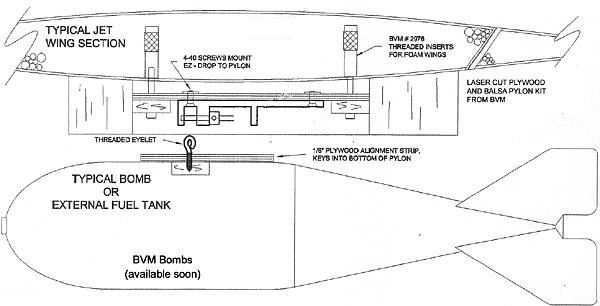

EZ-DROP

AIR OPERATED - SPRING RETURN BVM’s EZ-DROP simplifies the mounting and releasing of external stores without using a dedicated radio channel or servos. It operates via a single air line from the model’s retract system. Simply use the snap roll button to command a slight over travel on the retract system valve, and the tanks or bombs release instantly.

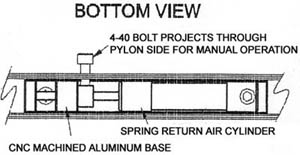

Retract valve servo with button valve setup to operate EZ-DROP. A minute amount of air is tapped from retract or brake system. Trigger through side of pylon allows easy manual operation.	Hand Loading Manual loading and unloading is super fast and easy and does not require tools. Simply hand operate the spring loaded toggle on the side of the pylon to install or remove your stores.

Click here to view other air system components such as T-fittings, air tubing, quick disconnects, etc.
