All Electric Jets
 |
 |
| E-Blue Retracts |
E-Brake
System |
The simplicity, reliability, and convenience
of an all electric model is now available for these 3 BVM jets. We worked
with the staff at "Down and Locked" (Mill Spring, NC) to convert our AirBlue
Retracts to electric power and control. Additionally, we developed the
E-Brake here at BVM, so now you can enjoy the benefits of an all electric jet.
Your trip to the flying field is more simple, "no air pump"
required, and of course, those pesky tiny air leaks are a thing of the past.
The BVM "All Electric" jets utilize small, inexpensive, JR Sport 35
servos to operate the wheelwell doors that are properly sequenced by the "Down
and Locked" control module.

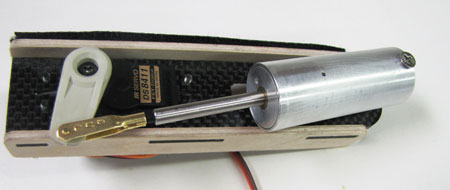

The original BVM O'Ring Brakes are actuated by a servo/cylinder device
that allows complete proportional control. The assembly fits into the
models where former air storage tanks were installed. When used with a
JR8411 or Spektrum 6030 servo, the E-Brake assembles in a matter of a few minutes.
The E-Blue retracts are completely assembled and tested at BVM. The
retract frames are identical to the AirBlue retracts so they mount

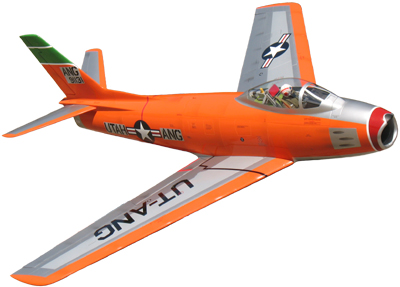

interchangeably with the AirBlue units in the 3 jets shown above.
E-Blue Pricing
| Part # |
Description |
Price |
| E2300-32 |
Electra E-Blue
Landing Gear System "BASIC" |
$1,195.00 |
| |
Includes
- Electric blue nose and main retracts, cycler and
programming cards, BVM wire struts, axles,
and Du-Bro wheels.
|
| E2300-35 |
Electra E-Blue
Landing Gear System "DELUXE" |
$1,450.00 |
| |
Includes
- Electric blue nose and main retracts, cycler and
programming cards, BVM wire struts, axles, V-Lite Wheels
and Brakes and the E-Brake Installation Package. |
| |
|
|
| E2300-65 |
Electra E-Door Kit |
T.B.A. |
| Part # |
Description |
Price |
| E3000-17 |
Sabre ARF/Fury E-Blue Retracts with
E-Brake |
$1,620.00 |
| E3000-65 |
Optional Gear Doors |
$275.00 |
| |
|
|
| Part # |
Description |
Price |
| K5300-17 |

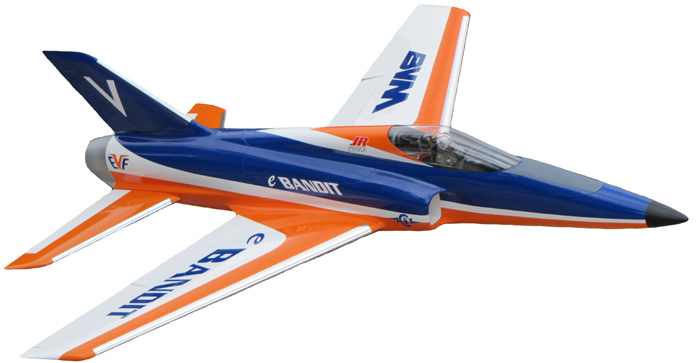

EBandit E-Blue Retracts with
E-Door installation and E-Brake |
$1,720.00 |
| |
Includes - all metal
retracts, Durostruts, 3" main wheels and brakes, 2-5/8"
Nose wheel, gear door servos, gear controller and
programmer. |
|
Q's and A's
Q's: How about converting my AirBlue to E-Blue?
A: BVM can convert your existing E-Blue retracts for $650.00 and
return shipping.
Q's: How about the MiG-15, T-33, and F-80 becoming
all electric?
A: Things take time, just as with the AirBlue to E-Blue system upgrade, we will
have a program to convert these models later - perhaps a year later.
|
