BVM's turbine engine mounts and straps are
designed to mount your engine to a BVM bypass duct. Straps and mounts are
available for the following turbine engines:
- JetCat P-80 / P-120 /
P-160
- JetCat P-70
- JetCat P-200
- AMT AT-180 (Mercury)
- AMT AT-280 (Pegasus)
- AMT AT-450 (Olympus)
- PST - 600
- SWB Mamba
- Simjet 1200
- Simjet 1700
- RAM 750 / 1000
- RAM 500
- T-500
- T-750
|
| Engine Mounts
|
BVM
# |
Price |
|
| PST-600, RAM 500,
Simjet 1200, SWB Mamba, WREN 54, T-500 |
T550 |
$60.00 |
|
| AMT Mercury |
T555 |
$60.00 |
|
| JetCat
P-80/120 |
T553 |
$60.00 |
|
| RAM 750/1000,
Simjet 1700, T-750 |
T557 |
$60.00 |
|
| AMT
Pegasus |
T559 |
$60.00 |
|
| AMT
Olympus |
T544 |
$60.00 |
|
| JetCat
P-200 |
T545 |
$60.00 |
|
|
| |
| |
|

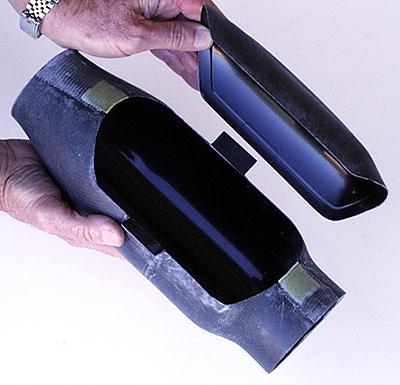

NEW JetCat P-200 bypass.
|
12lb thrust turbine bypass
tube shown above
|
BVM Bypass tubes are engineered
to provide air flow around the turbine engine and through the model. Each
bypass tube is made from high temp epoxy resin and carbon fiber
cloth.
|
| Bypass
Specs: |
Length |
Inlet Diameter |
Exit Diameter |
Part # and
Price |
|
| AMT Mercury,
PST-600 RAM 500, Simjet 1200, SWB Mamba, WREN 54 |
11-3/4" |
3.5" |
3" |
BVM #T324
(bypass) & T326 (cover) $195.00 |
|
| JetCat P-80/120,
RAM 750/1000, Simjet 1700 |
14-1/8" |
3.5" |
3" |
BVM #T340 (bypass) &
T342 (cover) $230.00 |
|
| AMT Pegasus,
JetCat P-160 |
13-1/2" |
4.35" |
3.25" |
BVM #T511 (bypass) &
T514 (cover) $305.00 |
|
| AMT Olympus /
JetCat P-200 |
14-1/8" |
4.35" |
3.65" |
BVM #T380 (bypass)
& T382 (cover) $305.00 |
|
|
| |
 |
 |

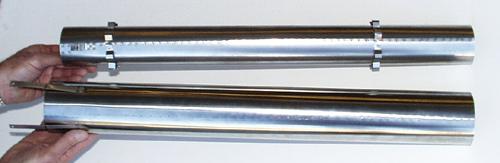

 Double-walled stainless steel tailpipes are standard for
turbojet installations in BVM kits. Our R&D department first designs,
flight tests and approves the hot exhaust system and then we manufacture the
parts to exacting tolerances. Full size drawings and photo illustrations allow
you to trim the pipe to proper length and install it into your BVM jet for
successful operation. |
 |
|
