Bandit Airframe Directive (A.D.) And other helpful
notes
Aileron servo mount
braces
 |

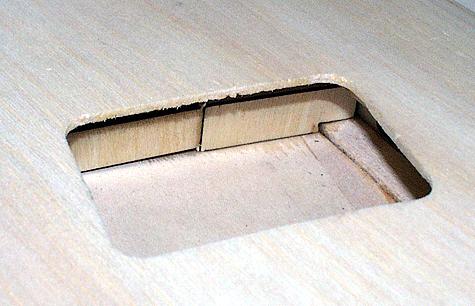

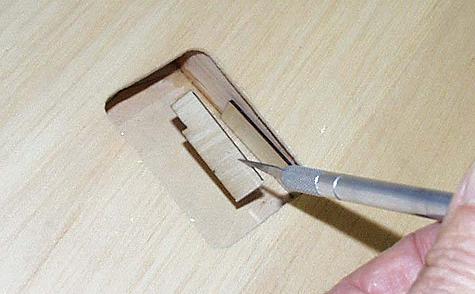

(4) Laser cut 1/16 ply parts per servo mount are
now used to strengthen the aileron servo mounting. Add these 1/16 ply
parts to both ribs that border the 1/8 ply servo mount. If you already
have the 1/8 ply mount installed it may be necessary to bevel the top
edge of the ply to clear the glue fillet. Apply Slow ZAP to each part and
insert them as shown.
|
The Rudder
As we mentioned September 21, 2000, there
have been two in-the-field problems with the rudders coming off in
flight.
Though no models were lost, we caution
users to hold down the speed until the below listed fixes can be implemented
and flight-tested.
The
Aerodynamic Fix

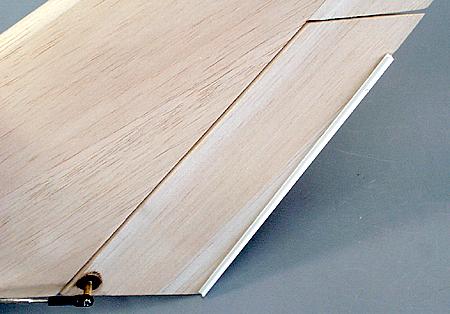

Add the 1/8" plastic angle
stock to both sides of the trailing edge of the rudder. Use C.A. glue to
adhere.
This is an aerodynamic fix
commonly used on full size aircraft control surfaces. It is also being employed
on giant scale aerobatic models (as flown in the T.O.C.) to solve some control
surface buzzing. It may be all that is required to prevent a problem from
occurring but we want to be certain by adding the mechanical
changes.
Mechanical Fixes
- Use a metal gear servo such as the
Airtronics 94141
- Be certain that the hinges are scuffed
with #80 grit sandpaper and then glued in securely.
- Use a 4-40 clevis system with 3/32"
control rod.
- Use a ball clevis system to connect to
the rudder.
- Use a heavy duty servo arm.
- All balsa Bandit owners will be shipped
necessary parts (except servo and arm) as soon as possible but before 1
November 2000. Please notify BVM if you do not receive your "balsa Bandit
rudder update kit".
 |

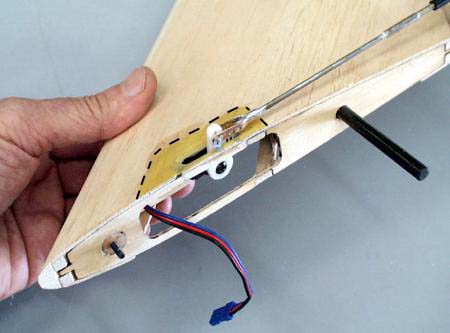

A patch panel of .010" poly ply will reinforce
the slot in the bottom of the fin. The new JRPA 215 heavy duty servo arms fit
well onto the Airtronics 94141 metal gear servo (available in reverse type with
JR compatible plug). Use a Sullivan 4-40 threaded
clevis with keeper, drill with 3/32 bit and solder on to the 3/32" wire
pushrod. A 3/8" x 5/8" long dowel is embedded into the balsa block at front of
fin to allow a 4-40 x 1" bolt to further secure the fin to the
fuse. |
 |

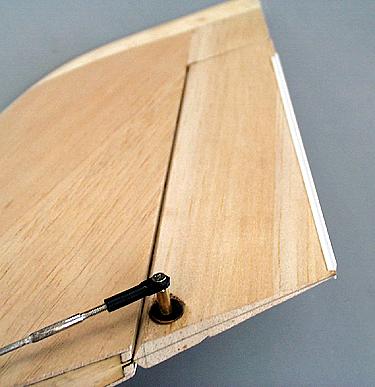

Solder a 4-40 threaded coupler onto the 3/32"
push rod and apply the 4-40 Dubro swivel type rod end. The brass stand-off
(custom made by BVM) accepts a 6-32 x 3/4" bolt through the dowel in the
rudder. Outboard end accepts the 4-40 screw through the clevis ball. Apply
Loctite to all threaded connections (except plastic). Note: Finished models have a 6-32 bolt for rudder horn, you can
cut the bolt off to accept the brass stand-off or heat it with a soldering iron
and back it out if it was glued in place. |
 |

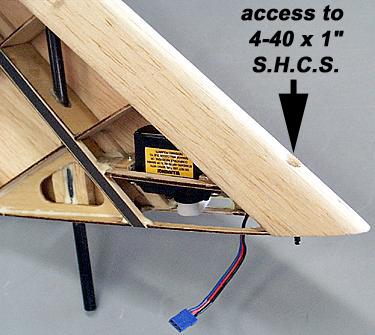

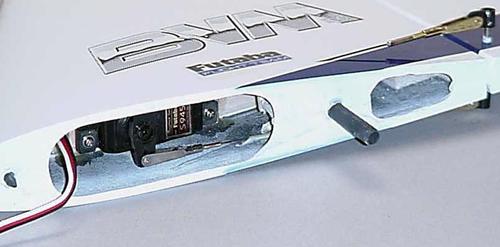

Servo shown installed, tighten mounting screws
very securely. Access to front hold down bolt is through leading
edge. |
|
 |
We've found that the Duro-Strut and Duro-Strut
Collar's will need to be filed down slightly to have the gear door close
properly. |
Wing Sheeting Notes
Balsa is a product of nature and therefore it
naturally varies in grain type and hardness. The wing, stab and fin skins are
pre-joined and laser cut to fit the structures after a selection process is
performed at the BVM factory. The skins are of good quality but of course,
cannot be perfectly uniform (natures way), so here are some tips to help you
best apply the skins.
Choose 2 wing & stab skins that are the hardest (heaviest) of
the 4 provided. Designate them to be used on the top of the surface. This will
provide the sub surface for the best finish after the resin, cloth, and paint
are applied. The tougher skins on the top will also provide the maximum
resistance to positive "G" loads when the top skins are in compression.
Check both sides
of the skins for any unsanded saw marks. If any are visible, designate this
side to face inward to the structure. If the skins are a bit too hard to
conform to the curvature of the wing toward the L.E. the old technique of
applying a 50/50 mix of ammonia and water to the outside surface really
facilitates the bending process. Apply with a fine spray or wipe on with a
dampened sponge.
We check the skins for a continuous glue joint but you may check
them as well. If a void exists between the 3" or 4" panels, apply thin CA to a
razorblade and then to the skin joint. Block sand this area on a smooth surface
with #320 paper.
|
Rudder linkage |
 |
 The 1/32"
pull-pull wires are sleeved with 1/16" brass tubes (1/2" long), then soldered
into a Sullivan 2-56 threaded coupler. This can be attached to the servo arm
with a safety clip (Sullivan). This idea and photo from David Ribbe is the best
linkage for this critical control system if you plan to go really
fast. |
RUDDER A Bandit with a
standard fin experienced a severe rudder flutter as a result of servo gear
failure and the unfortunate result was a crashed model. This is the first time
that this has occurred in 4 years and thousands of Bandit flights that we are
aware of. Since the standard fin has a larger rudder than the swept fin it
would follow that it would be more prone to a flutter problem. Flutter can
occur if there is any spring in the control system. This dictates that the
servo be very tightly screwed to the mounting rails and that the mounting rails
be very securely glued to the internal fin structure.
By switching to a metal gear servo, we
also can remove a possible weak link in the system. Worn nylon gears can also
be a spring source. We have been using JR 3321 servos for the rudder but these
servos do not feature metal gears and currently there are no plans to change
it.

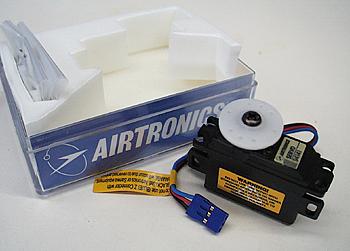

We just received a sample 94141 servo from
Airtronics that comes with a JR compatible plug. This is a high torque
precision unit with a metal gear train and a uniquely variable mounting system.
It looks like a great candidate for operating some control surfaces (like the
Bandit rudder) on jets. See your Airtronics dealer.
Another consideration: If a
control surface gets a hard rap from accidental handling as can happen in
transport or just sitting in the pit area, nylon gear trains could be damaged.
If undetected, this damage could show up in flight. If there is some concern in
this area it is worth the time to change the servo before flight and have it
checked out later.

|
