Specs:
Scale: 1:5.8
length: 68"
wingspan: 68"
weight: EVF 20.5# with
7700
mAh Flt. Batts.
Turbine
21-23#
speed range: 35-180 mph |
MiG-15 ARF

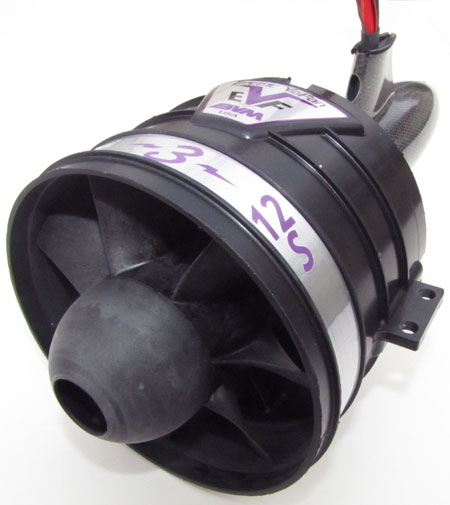

For: EVF 12S or 14#-21# Turbine
All New Tooling, All
Composite, All Painted-in-the-mold,
and
All Made in the USA
A generous wing area, a stretched tail
moment and an unmatched wide-stance landing gear make the
MiG-15 a very desirable jet fighter for scale modeling.

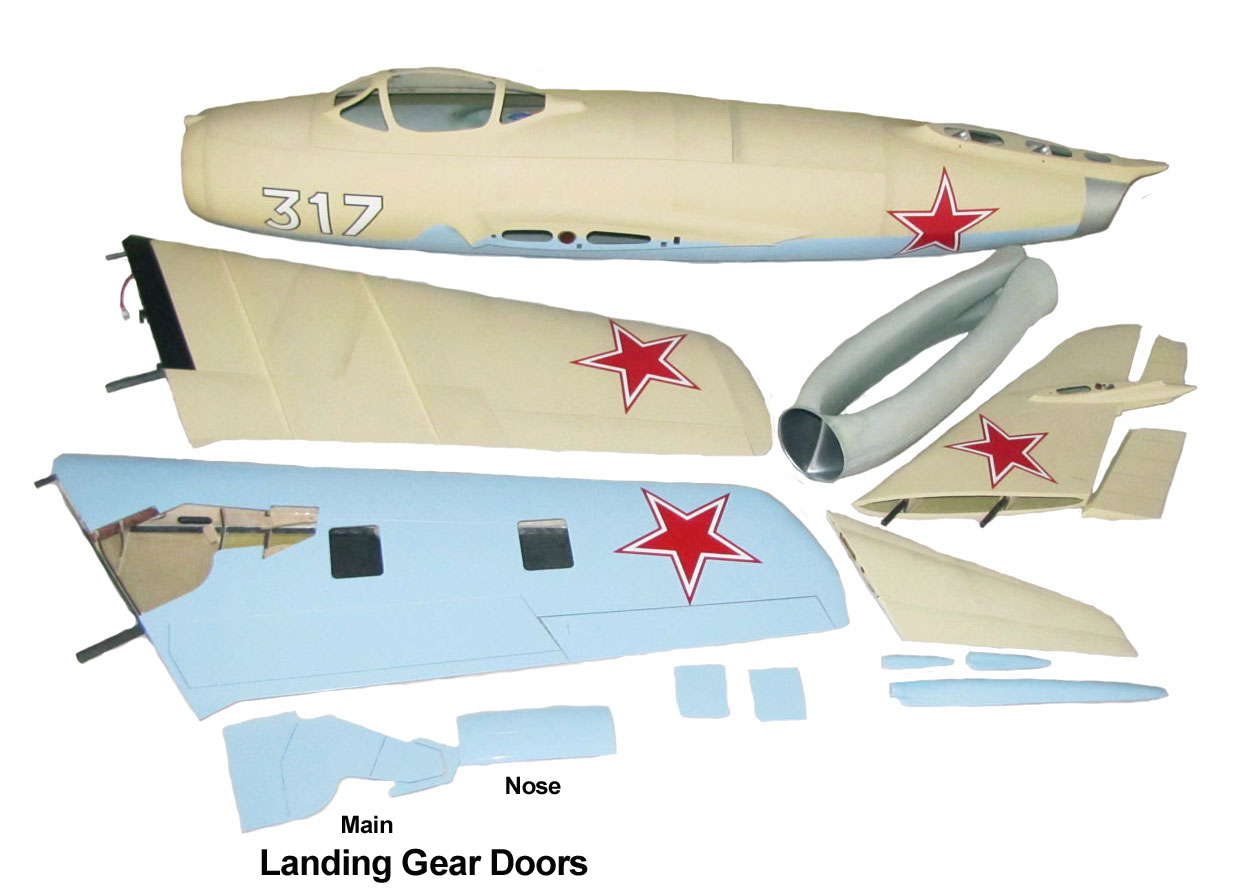

And now, this BVM ARF is quick to assemble with every detail
attended to in the parts provided and assembly manual.

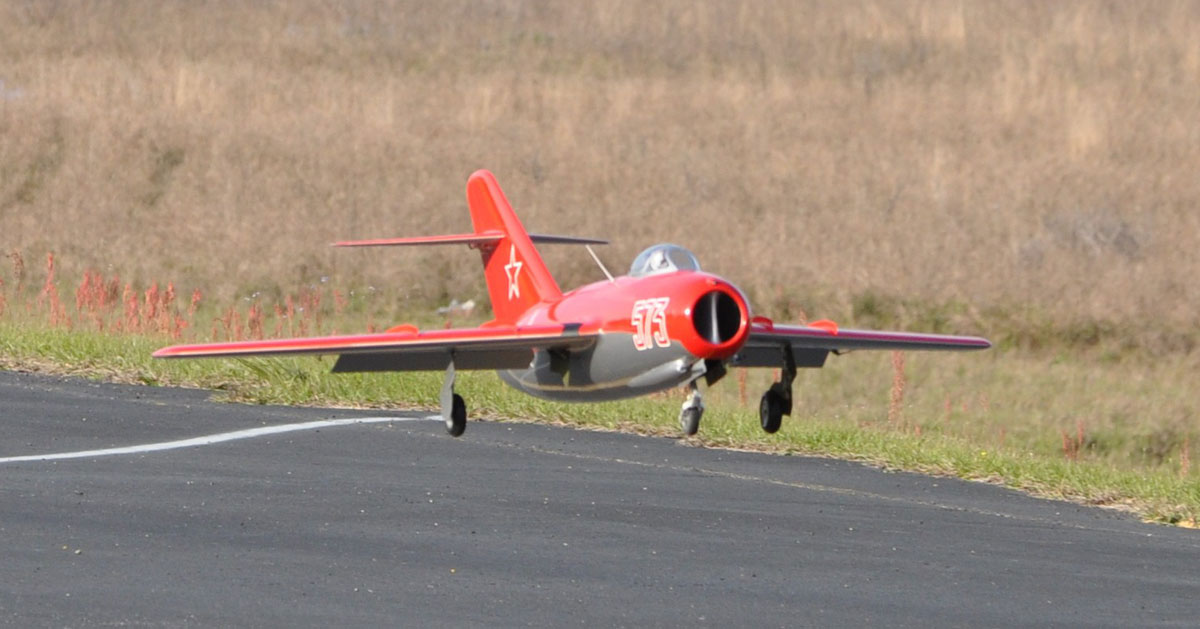

Easy To See And Land
 |
 |
|
From
any view it is obvious, the MiG is easy to
identify in the air because of its high tail and
swept outline, and, its positive wide ground
stance allows short field take-offs and
crosswind landings. It's a perfect scale
jet subject for EVF and small turbine power. |
Superior Composite
Structures
| The
MiG-15 airframe is entirely painted-in-the-mold and
then hand laminated with just the right amount of
fiberglass, Kevlar, and Carbon Fiber in just the
right places. You get the lightest, strongest
airframe possible and it's all accomplished in our
Florida, USA factory. The final finish on your
MiG-15 is accented with scale weathering techniques
and insignias and flat clear coated when
appropriate.
We even fill, sand, and paint the seams on the top
side of the fuse and fin. This is a very
special ARF worthy of the Bob Violett "Signature
Series" designation. |
 |
Wing and Tails
Factory Mounted
|

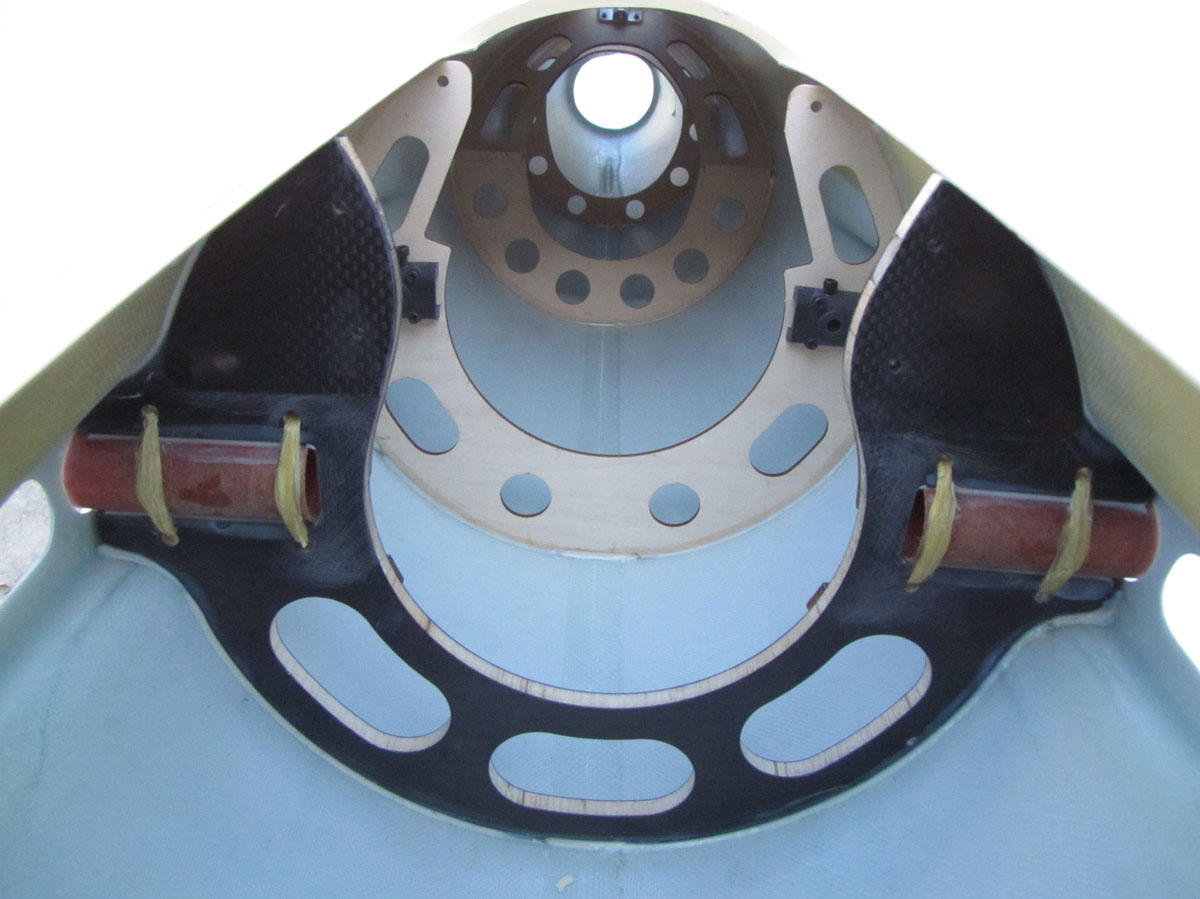

After demolding, the formers and tubes that mount
the wings and tails are installed into the fuselage at BVM using
precise fixtures and Aeropoxy. These are the
neatest and strongest glue joints you will ever see
in an ARF. |
 |

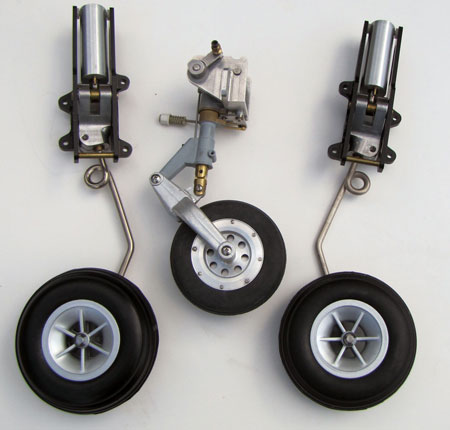

Under Carriage
- Grass Field Proven
For EVF Power
To help keep the
weight and cost low, these formed 3/16" spring wire
struts and ProLite wheels are excellent. And
since the strut doors are wide, the
non-scale main struts are difficult to detect.
A nose wheel brake is used for adequate braking
on a paved runway. |
|

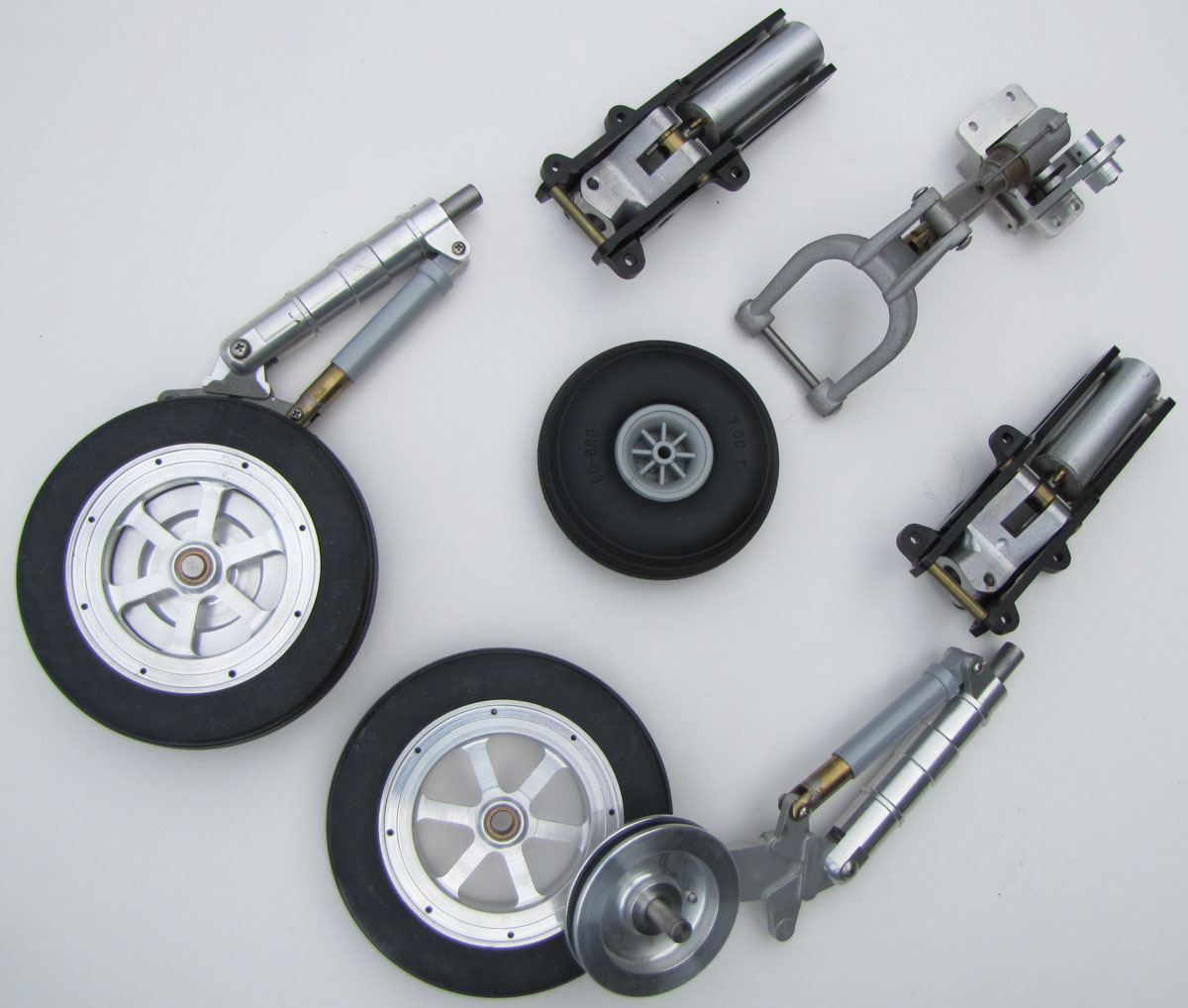

For Turbine Power
Turbine powered models require a full braking system
and these BVM main wheels and brakes get the job
done. The Oleo struts are CNC machined from
7075 Aluminum for maximum strength and the spring
knee action just can't be beat. Competition
flying and years of refining make the MiG scale
undercarriage excellent. |

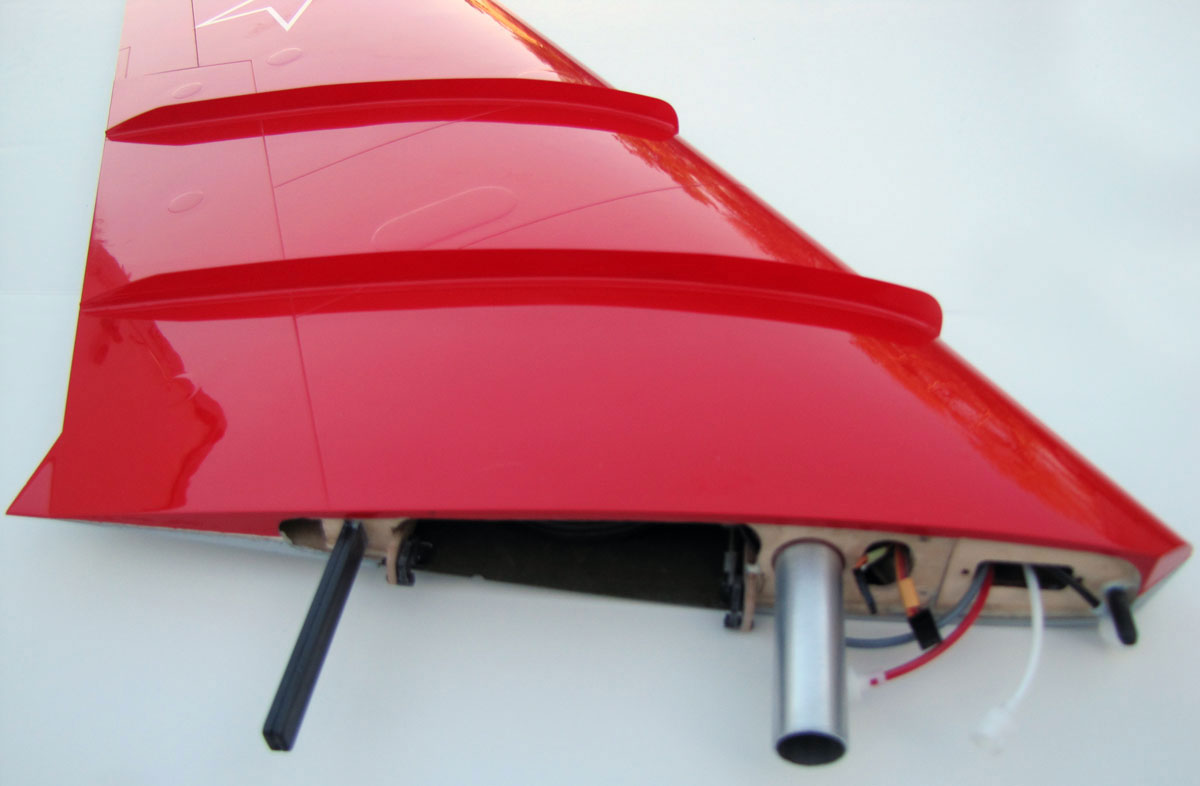

Wing Details
 |
 |
 |
|
The scale swept wing fences that are so much a part
of the MiG-15 are factory installed and painted. |

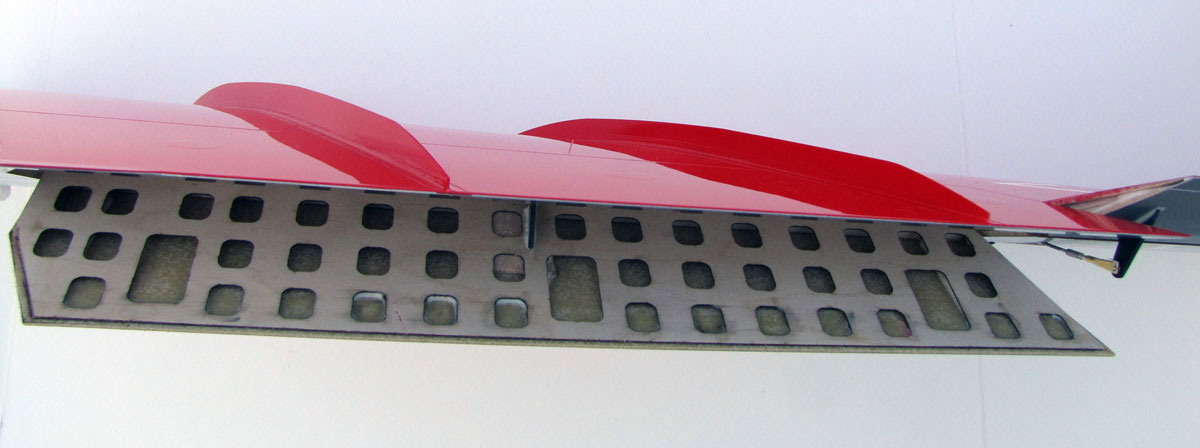

The wing flaps internal skin detail is cleverly
assembled in the mold and skin hinged for your
convenience. |

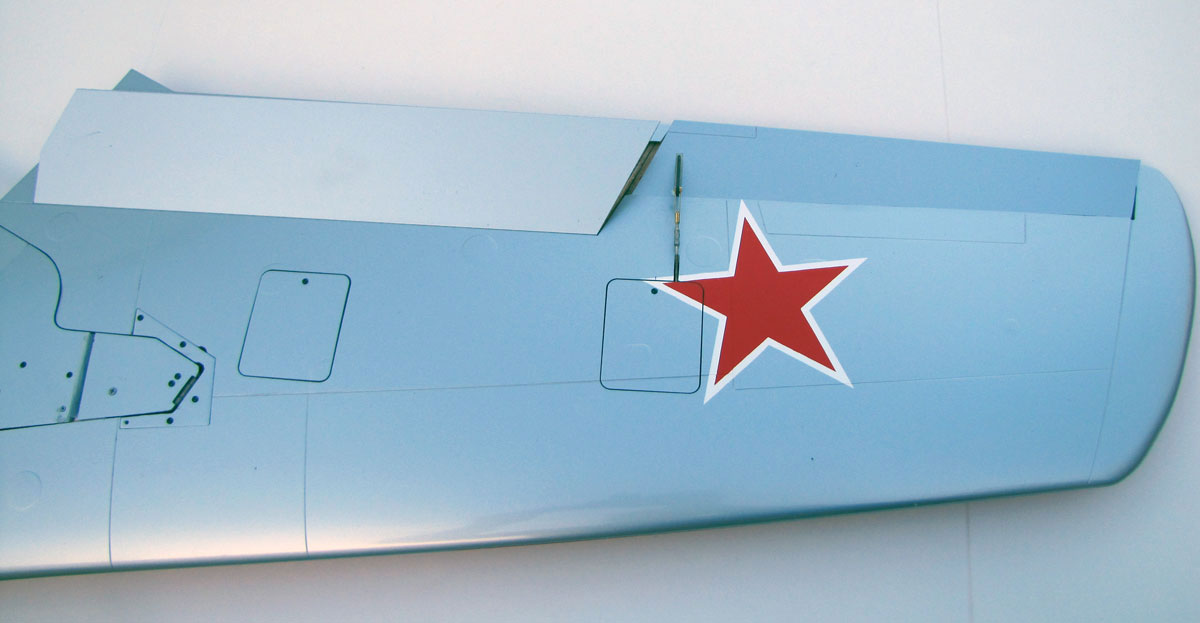

The Ailerons and Elevators are also skin hinged,
reducing your chores for servo and linkage
installation. |

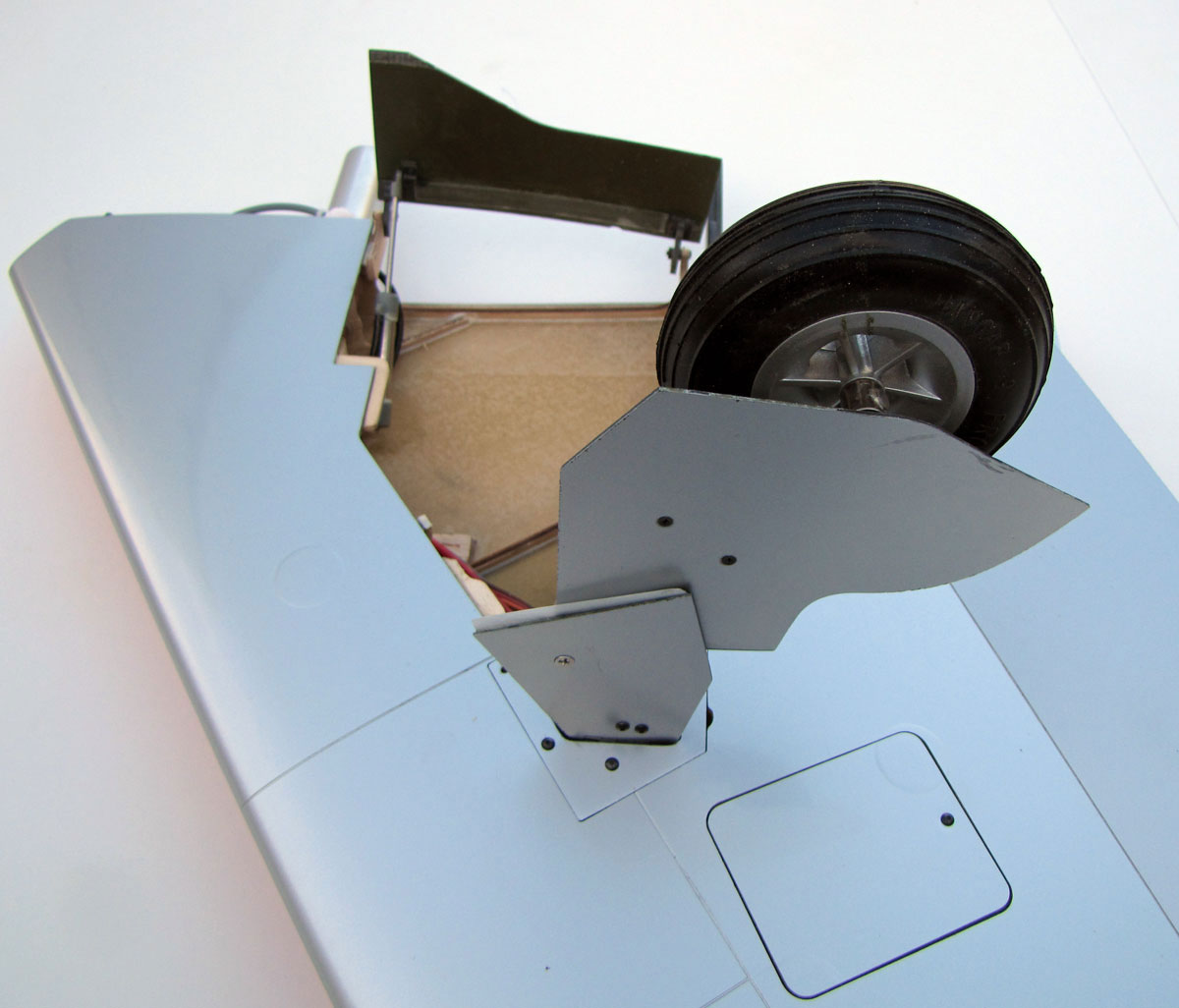

| Full landing
gear and wheel well doors are especially important
for electric jets to save battery energy. The
BVM MiG-15 features painted molded doors with all
the hardware and details of installation attended to. |
 |
|
Speed Brake Kit
optional for EVF power
required for Turbine power
# K7600-35 $179.95
This option
is labor intensive and not required for EVF
power. Speed Brakes are a good option for
a turbine powered MiG-15. |
 |
Power Option
Support
The BVM MiG-15 can be converted from EVF to turbine power or
vice versa.
 |
 |
|

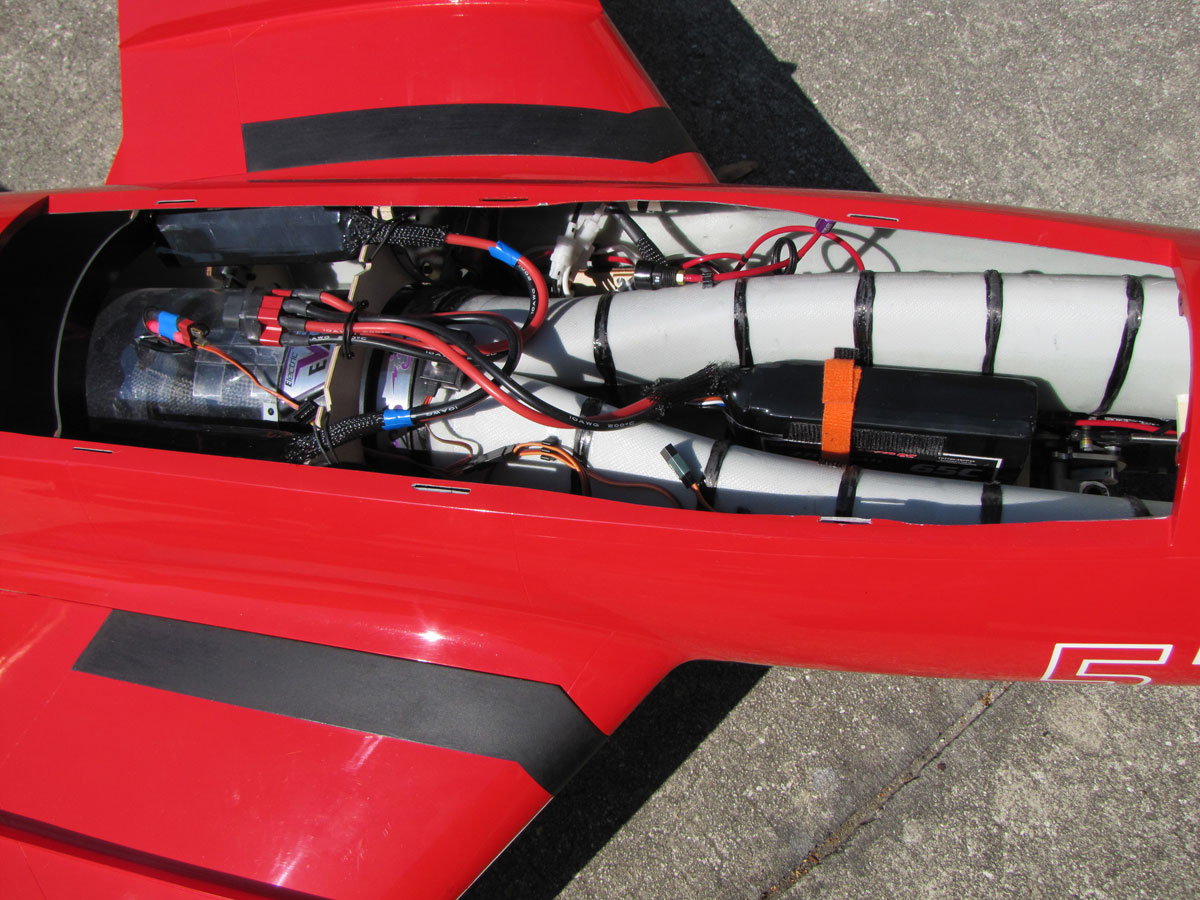

Current and future battery capacity and super easy
access to them are bonus points for the application of
EVF power. |
Kevlar fuel cells are utilized to hold 2.8 liters of
fuel giving you over 10 minutes of flight time.
The MiG's fuel system comes complete with the Kevlar
cells, all necessary hardware and U.A.T. |

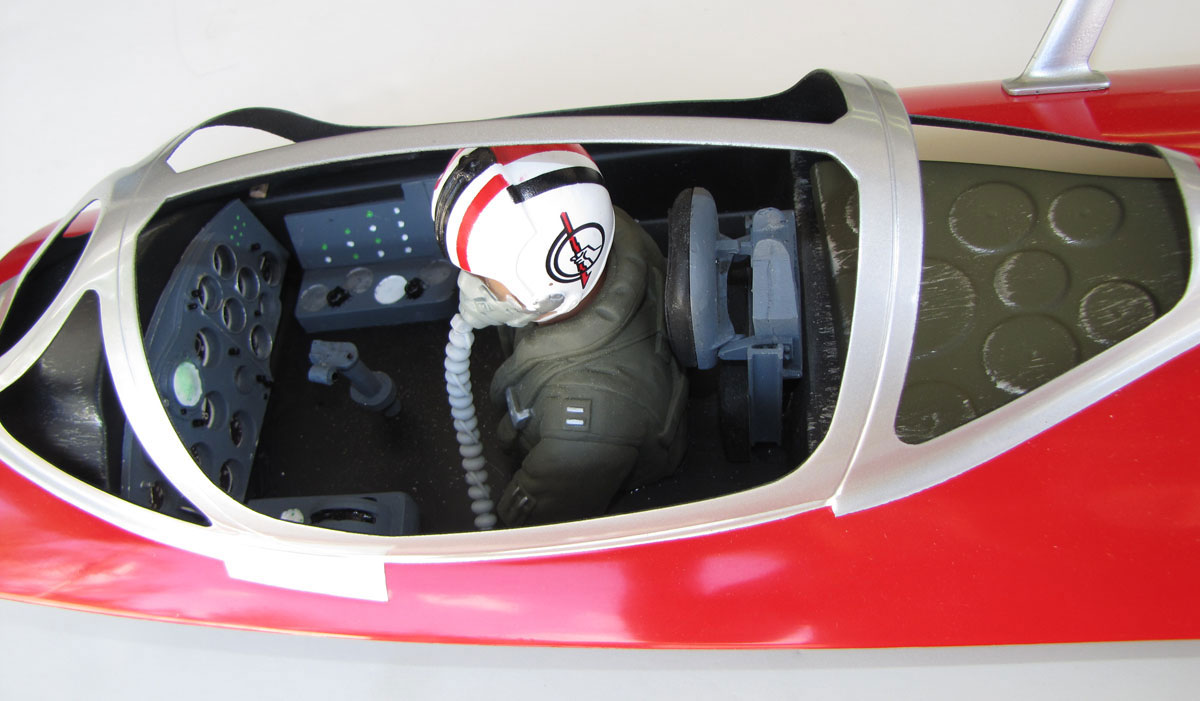

Cockpit Kit
 |
|
BVM supplies all of the resin and vacuum molded
parts and instrument panel film. And, we made
a detailed photo enhanced assembly manual. You
add some Model Master Paint and enjoy putting it
together. It's like assembling a plastic model
kit and the results are worth the few hours of hobby
time. |

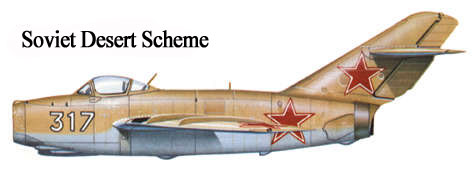

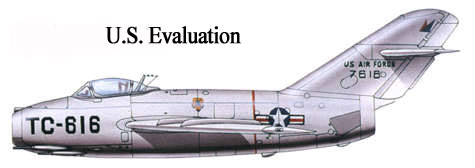

Color Schemes
This scheme is a sample
of what can be accomplished with the All Aluminum MiG.
Contact
ProMark for the numbers and stars.
Phone (618) 524-2440

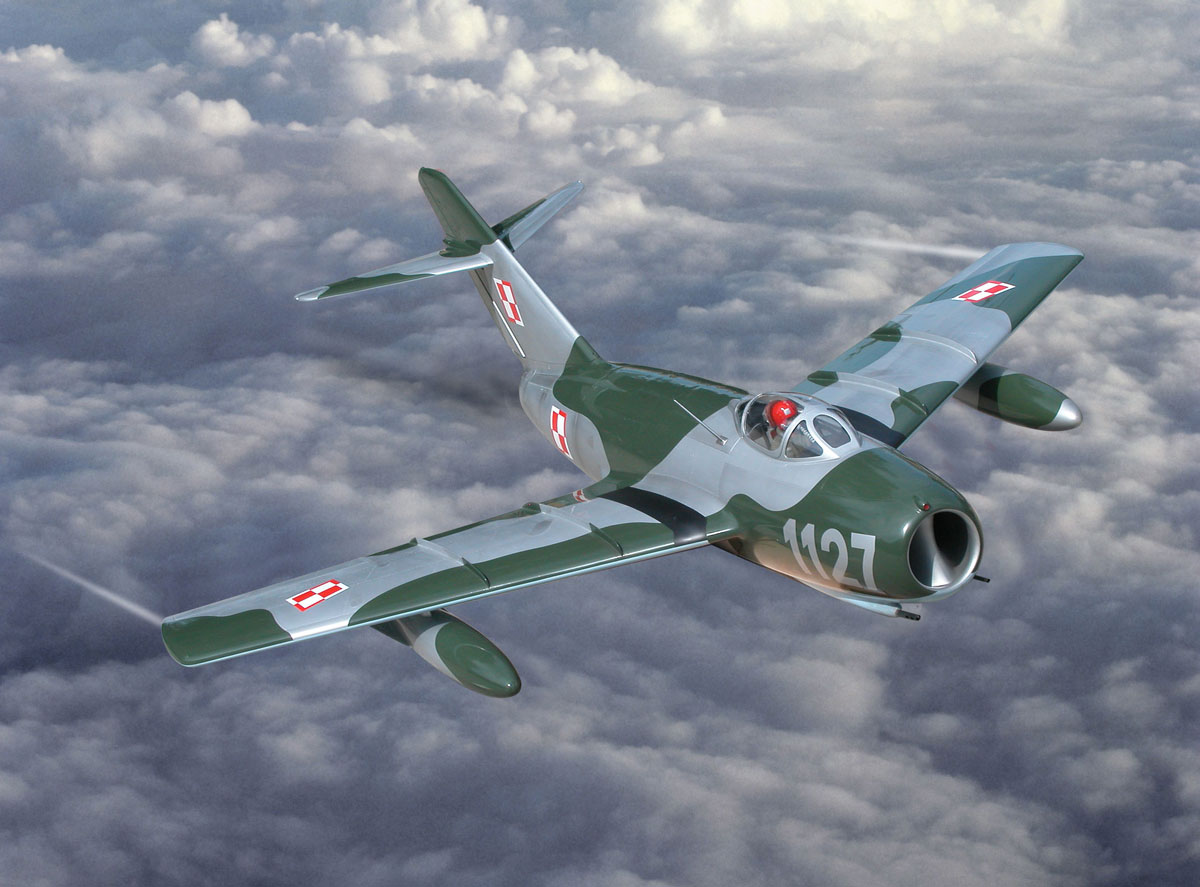

Wing Tanks and Pylons
BVM # 7544
| Whether your MiG is scale or for
fun, wing tanks always add to the overall look and visibility of a model. These tanks come
complete with all materials necessary, including wood for the pylons and tank
fins. The wing tanks are fiberglass and come as one piece from the
factory. They require assembly and painting. The "Hard Points" are
built into the wings at BVM. |
 |
A Scale Jet That Can Travel
Plug-in wings, stabs and fin provide easy transport,
especially if you have a BVM Jet Case. The fiberglass molded
case is UPS legal and can travel as extra baggage with you
on an Airline.
EVF Power Pricing
| PART # |
DESCRIPTION |
PRICE |
|
JET KIT |
| K7600 |
MiG-15
ARF EVF
Power ............................................................................... |
$4,795.00 |
| |
includes
- painted airframe, hardware, clear canopy, cockpit
kit, full landing gear doors, and photo
enhanced/detailed instruction manual. |
|
for
plain Aluminum deduct $500.00 |
Landing Gear System for EVF MiG
|
| |
|
|
| K7600-10 |
Landing
Gear
System ................................................................................... |
$995.00 |
| |
includes - precision
machined aluminum retracts, scale nose strut,
tempered coil main struts, wheels, nose wheel brake,
air tank, valves, airline, "T" Fittings, Fill Valve,
Mini Air Gauge, etc. |
| |
|
|
| |
Turbine Pricing |
|
|
JET KIT |
|
|
| K7200 |
MiG-15
ARF Turbine Power
.......................................................................... |
$4,795.00 |
| |
includes - painted
airframe, hardware, clear canopy, cockpit kit, full
landing gear doors, Speed Brake Kit, and photo
enhanced/detailed manual. |
|
for
plain Aluminum deduct $500.00 |
| |
|
|
|
Landing Gear System
|
|
| 7510 |
Landing
Gear System
.................................................................................... |
$1,595.00 |
| |
includes - Retracts, air
install package w/door cylinders, scale oleo struts,
wheels, brakes, air tanks, airlines, t-fittings,
fill valves, Mini Air Gauges, and Smooth Stop II. |
| |
|
|
|

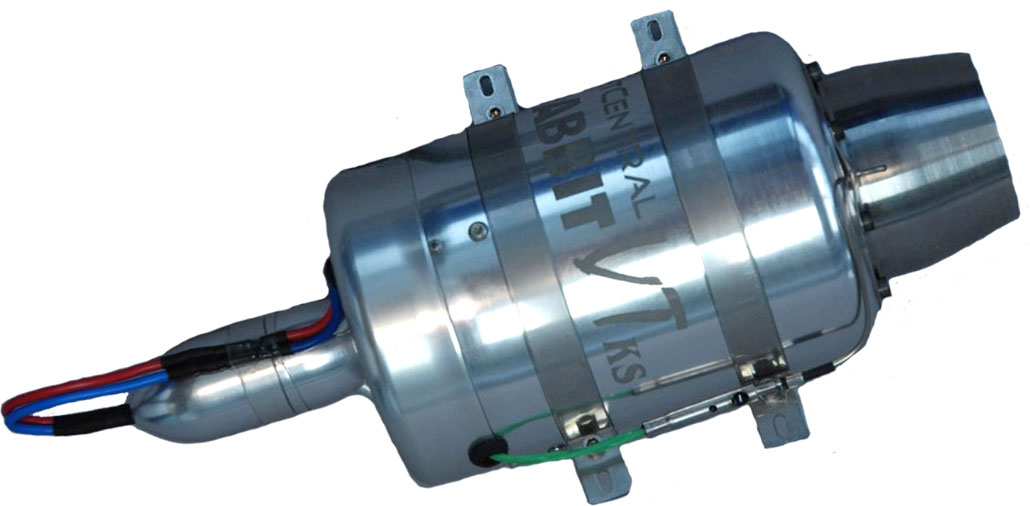

Turbine Installation Kit |
|
| |
For
JetCat or Jet Central 14-20# thrust
- specific engine type
(includes straps & mounts) |
$462.00 |
| |
includes - Carbon Fiber
ByPass, double walled S.S. Tailpipe, and hardware |
| |
|
|
|
Fuel Cells |
|
| 6090 |
Kevlar
Kerosene Fuel Cells
(3 Kevlar fuel cells
w/hardware, 1 U.A.T., 2.8 total)
................ |
$308.00 |
| |
|
|
|
Airframe/Engine Combo Prices Available
See
EVF pages for all
support equipment. |
| |
|
|
|
OPTIONS: |
| |
|
|
| K7600-35 |
Speed Brake Kit
....................................................................................................................... |
$179.95 |
| 5732 |
MGA Pilot ................................................................................................................................... |
$45.00 |
PA-SR-0046
|
Epoxy Starter Kit
.......................................................................................................................
includes - Aeropoxy, Vpoxy, QTPoxy cartridge, 2 long
nozzles, and 4 short nozzles |
$89.95
|
| 650 |
JetCase ...................................................................................................................................... |
$629.00 |
| 7544 |
Wing Tanks (2)
with laser cut pylon kits .................................................................................. |
$192.50 |
see BVMJets.com/Electric Power
for batteries, chargers, etc.
MiG-15
ARF
Airframe Directive (A.D.)
And other helpful notes
Nose Gear
Doors
(11/21/2011)
Addendum #iK7600A-52
Nose Strut
Length Adjustment
manual page 14
(09/16/2011)
Addendum #091611
Elevator/Stab Procedures
manual pages 26-27
(09/16/2011)
Addendum #091611
Cockpit
Details
(08/29/2011)
Caution: Be careful to not allow
the process of gluing in the clear plastic into the F/G
frame to distort the fit of the F/G hatch to the fuse.
Check this fit frequently during this process.
Retract Control
Valve and Servo Mount
(08/26/11)
Addendum #082611
