Retract Air Selector Valve modify for large
jets

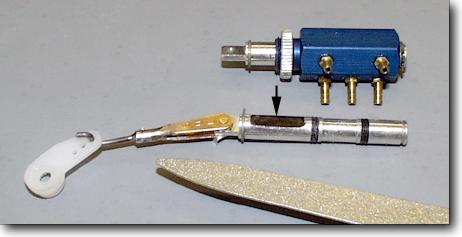

 File flat spot as black area
indicates.
The BVM F-100, F-4, and Rafale landing gear
units utilize larger air cylinders to retract larger/heavier struts and
wheels.
Modifying
the Robart valve as shown will allow the air to escape faster from one side of
each cylinder as it is filled for actuation from the other side.
All 3 gear will now work
in unison and with more positive action. Our factory prototypes of these "Heavy
Jets" do not utilize in line air restrictors.
